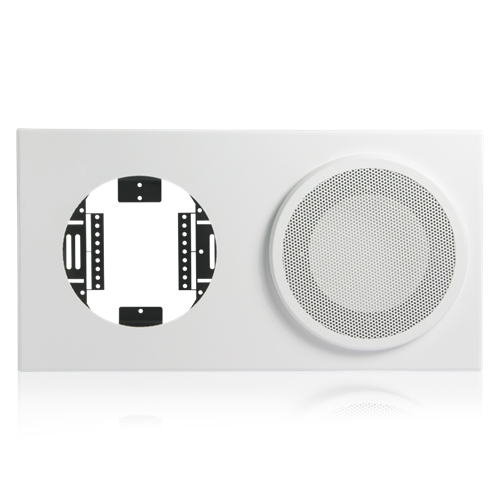

Baffle for 8 inch Speaker and 8 inch or 9 inch Analog Clock

Availability: In stock
Your Price:
  • BAA
  • TAA
    Economical clock/speaker baffle assembly features a CRS grille and trim ring mounted to an 18-gauge CRS panel with cutouts for mounting an 8" dia. speaker (order separately). The 830 Series mounts into position using a double-action torsion spring system to provide a hardware-free appearance. Models include a black gasket for concealed mounting of an 8" dia. (203mm) speaker and a universal clock mounting bracket for installation of almost any 8" or 9" dia. analog clock (by others). The panel, grille, and trim ring components are finished in a white epoxy. Assemblies can be recessed or surface mounted using 194 Series enclosures

    • Can be Recessed or Surface Mounted Using 194 Series Enclosures
    • Mounts into Position Using a Double-Action Torsion Spring System to Provide a Hardware-Free Appearance
    • Panel, Grille, and Trim Ring Components are Finished in a White Epoxy

    Clock Hole Size 8.75"
    Compatible Enclosures 194-89, SM194-89
    Height 14" (35.56 cm)
    Width 26 1/2" (67.31 cm)
    Shipping Weight 8.00 lbs (3.63 kgs)
    Warranty Period 60 months from date of purchase

    830-89A CAD Drawing 830-89A CAD Drawing
    Analog Clock Baffles Datasheet (2 pages) Analog Clock Baffles Datasheet (2 pages)
    Series 830, 840, 194, and 195 Install Sheet (2 pages) Series 830, 840, 194, and 195 Install Sheet (2 pages)
