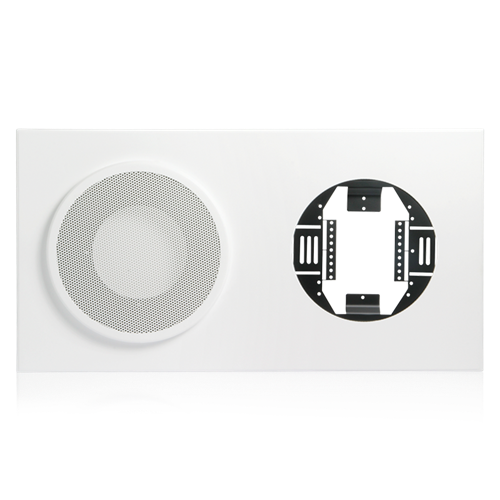

Baffle for 8 inch Speaker and 12 inch Analog Clock

830-812A
Availability: Call for Availability
Your Price:
$235.99
  • BAA
  • TAA
  • HYFIDROPHOBIC_OPTIONAL
    DESCRIPTION
    Economical clock/speaker baffle assembly features a CRS grille and trim ring mounted to an 18-gauge CRS panel with cutouts for mounting an 8" dia. speaker (order separately). The 830 Series mounts into position using a double-action torsion spring system to provide a hardware-free appearance. Models include a black gasket for concealed mounting of an 8" dia. (203mm) speaker and a universal clock mounting bracket for installation of almost any 12" dia. analog clock (by others). The panel, grille, and trim ring components are finished in a white epoxy. Assemblies can be recessed or surface mounted using 194 Series enclosures

    Features
    • Can be Recessed or Surface Mounted Using 194 Series Enclosures
    • Mounts into Position Using a Double-Action Torsion Spring System to Provide a Hardware-Free Appearance
    • Panel, Grille, and Trim Ring Components are Finished in a White Epoxy

    SPECIFICATIONS
    Clock Hole Size 10.5"
    Clock Size 12"
    Compatible Enclosures 194-812, SM194-812
    Height 17 7/8" (45.35678 cm)
    Width 33 7/8" (86.0425 cm)
    Shipping Weight 10.00 lbs (4.54 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    Analog Clock Baffles Datasheet (2 pages) Analog Clock Baffles Datasheet (2 pages)
    Series 830, 840, 194, and 195 Install Sheet (2 pages) Series 830, 840, 194, and 195 Install Sheet (2 pages)
