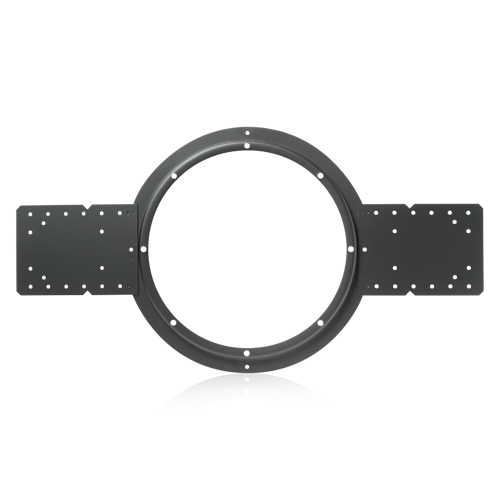

8 inch Mounting Ring 24 inch Studs

Name: 8" Mounting Ring 24" Studs
Brand: AtlasIED
SKU: 76-8E2
Rating: 5 (5 reviews)

76-8E2

Availability: Call for Availability

Your Price:

$32.99

DESCRIPTION

Use Model 76-8(E2) for installing screw mount baffles for 8" speakers as well as 95 series enclosures for new construction drywall applications. Unit includes mounting ears to facilitate 16" or 24" OC stud mounting.

Unit is constructed of 20 ga. CRS finished in textured epoxy, and includes four 8-32 J-Nuts.

Features

Suited for a Variety of Ceiling Constructions Including Drywall, Plaster, Conventional, Stud Ceiling, and Retrofit Applications
Works with 8" Screw Baffles and 95 Series Enclosures (if "T"-nuts are Removed)

SPECIFICATIONS

Depth	7/16" (1.11252 cm)
Diameter	11 7/8" (30.1625 cm)
Shipping Weight	1.30 lbs (0.59 kgs)
Mounts Baffle	51-8, 60-8(W), 61-8W, 62-8(W), 63-8, 170-8, VP-60R, M222(W), P900
Warranty Period	12 months from date of purchase

SUPPORT FILES

76-8E2 CAD Drawing

Download

4" and 8" Mounting Rings Datasheet (2 pages)

View | Download
