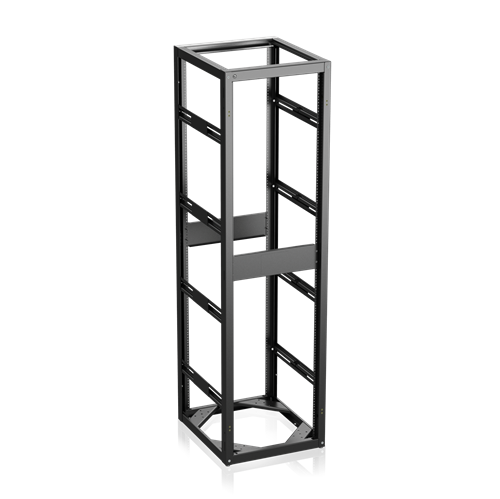

For single and multiple bay configuration installs requiring additional weight capacity and extended depths, AtlasIED offers the 14-gauge frame construction of the 744-25. The 744-25 is 22 1/2" wide, 25" deep, and has 44 vertical panel spaces.
Multi-formed and welded frame members provide superior strength and load bearing capability. Base is constructed of double-formed front and rear sections, MIG welded and reinforced with 11-gauge CRS corner caster gussets. Vertical columns interlock with frame top and base adding double material thickness for superior load bearing capability. Mounting rail channel support members are multi-formed and MIG welded for superior interlocking support. Panel mounting rails are fully adjustable front to rear.
Base includes four 3/8"-16 threaded sockets to accept leg levelers (Models LL-1) and four 11-gauge CRS corner gussets that are punched to accept casters. Base also has provisions to be permanently secured to the floor.
Shipped with 2 pair of 11-gauge CRS adjustable mounting rails. Rack rails are precision tapped 10-32 and recessed 1 3/16" (30mm). These plated rails include convenient RU indicator hash marks to aid in equipment alignment. Rails are standard E.I.A. 5/8"-5/8"-1/2" spacing.
Hat sections are on 19" panel spacing to accommodate vertical accessory mounting.
This cabinet sports a solid secure professional look without punched vents. Therefore, thermal air-flow design may be precisely designed and maintained without the fear of contaminants or other foreign/damaging objects entering through vents.
With the addition of optional Seismic Bracket, SBK-700, 700 Series Racks can be certified in accordance to the Telcordia NEBS (Network Equipment Building Systems) GR-63-CORE standard. When the SBK-7-- brackets are properly installed, the 700 Series successfully endured the rigorous real-world dynamic test - the racks are able to withstand up to a zone 4 earthquake which is comparable to Richter magnitude 8.0!</div
35RU to 44RU Heights in 25 1/2" Depth
Heavy Duty 14-Gauge Frame Construction
The Perfect Rack to Handle Installations of Heavy Rack-Mount Equipment
Optional Rear Door Offers Right or Left-Hand Hinging Capability
Increased Opening Base Facilitates Wiring Conduit or to Access Below Floor Raceways
Two Functional 3 RU Blank Panel (5 1⁄4") Provided
Pre-Drilled to Accept M-1A Cabinet Mount IR Repeater
Optional Seismic Bracing Kit Available (SBK-7XX)
UL 1678 Listed
