19 inch Wide Opening Stand Alone Basic Wall Cabinet w/ Locking Front Door - 7 RU

607-15
Availability: In stock
MSRP (USD): $538.99
  • BAA
  • TAA
    DESCRIPTION
    AtlasIED Model 607-15 is a surface mounting wall cabinet used for housing small electronic system installations including 19" wide amplifiers, tuners and associated communication controls for schools, churches, clubs and recreation facilities.

    The 607-15 has a vertical panel opening of 12 1/4" (311mm) and is constructed of 16-gauge CRS.

    Louvers on each side of the cabinet are provided for ventilation. The fixed 11-gauge CRS panel mounting rails are recessed 5/8" (16mm) for a "flush" look. Locking front door is standard.

    Panel-mounting screws (10-32 x 3/4") are provided for equipment panel and accessory mounting. Mounting rails are tapped 10-32 on EIA spacing.

    Three double 1/2" (13mm) and 3/4" (19mm) knockouts are provided on the top and bottom of the cabinet for wire entry. Four keyhole slots for wall hanging are provided on the back panel.

    The 607-15 is shipped completely assembled and is finished in (#962) black epoxy powder coat.

    Features
    • 10-32 Pan Head Screws for Panel Mounting
    • 16-Gauge CRS All Welded Construction with 11-Gauge CRS Fixed Tapped Mounting Rails
    • Completely Assembled
    • Convenient Pre-Punched Back Panel for Wall Mounting
    • Locking Front Door
    • Vents on Each Side

    SPECIFICATIONS
    Rack Units 7
    Height 15 1/2" (39.37 cm)
    Width 22 5/16" (56.68 cm)
    Depth 15 3/8" (39.05 cm)
    Usable Depth 14" (35.56 cm)
    Shipping Weight 45.00 lbs (20.41 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

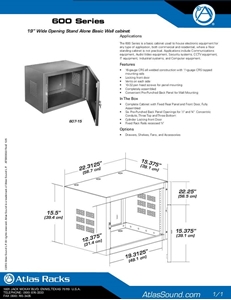

    600 Series Datasheet (2 pages) 600 Series Datasheet (2 pages)
    607-15 CAD Drawing 607-15 CAD Drawing
