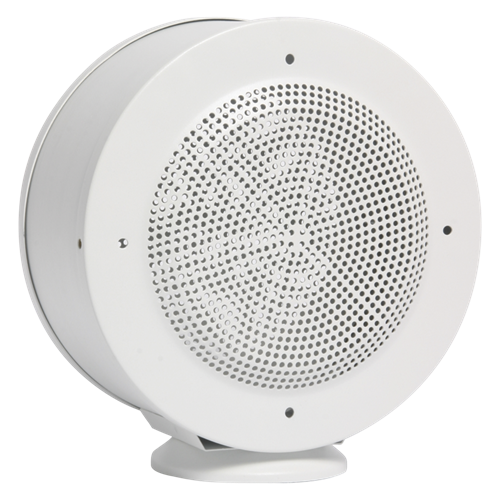

Cylindrical Bidirectional Baffle/Enclosure 8 inch White

510-8W
Availability: In stock
Your price (USD): $253.99
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
    DESCRIPTION

    This compact aluminum baffle/enclosures are identical to the 410 Series with the addition of a circular mounting canopy complete
    with mounting hardware and second grille to enable bi-directional sound dispersion.

    Model 510-8W mount a standard 8" (203mm) speaker (will not work with 8W Transformer). Aluminum housing is patch-jute lined and undercoated to allow clear, audible speaker performance by preventing mechanical and acoustic resonance. One grille per unit includes studs for convenient speaker mounting.

    Complete assembly installs to a 4" (102mm) octagon E.O. box (by others).

    Finished in textured white (W) epoxy.


    FEATURES
    • Attractive, Non-Rusting Aluminum Construction finished in textured white epoxy
    • Bi-directional Models 8" (203mm) Loudspeakers
    • Ideal for Corridor Applications Where Surface Mounting Space is Limited

    SPECIFICATIONS
    Depth 5 1/4" (13.335 cm)
    Diameter 90 5/16" (23.65502 cm)
    Shipping Weight 2.00 lbs (0.91 kgs)
    Speaker Size 8

    SUPPORT FILES
    SL3.1469
