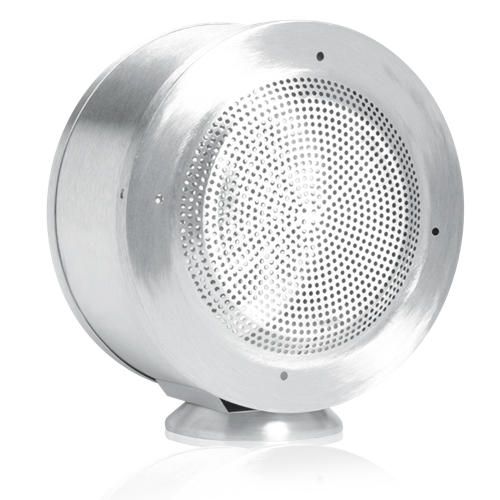

Cylindrical Bidirectional Baffle/Enclosure 8 inch

  • UL Listed
  • BAA
  • TAA

    This compact aluminum baffle/enclosures are identical to the
    410 Series with the addition of a circular mounting canopy complete
    with mounting hardware and second grille to enable bi-directional sound dispersion.

    Model 510-8 mounts a standard 8" (203mm) speaker (will not work with 8W Transformer). Aluminum housing is patch-jute lined and undercoated to allow clear, audible speaker performance by preventing mechanical and acoustic resonance. One grille per unit includes studs for convenient speaker mounting.

    Complete assembly installs to a 4" (102mm) octagon E.O. box (by others).

    Finished in satin brushed aluminum.

    • Attractive, Non-Rusting Aluminum Construction
    • Bi-directional Models 8" (203mm) Loudspeakers
    • Ideal for Corridor Applications Where Surface Mounting Space is Limited

    Depth 5 1/4" (13.335 cm)
    Diameter 90 5/16" (23.65502 cm)
    Shipping Weight 2.00 lbs (0.91 kgs)
    Speaker Size 8
    Safety Listed 1480

    510-8 CAD Drawing 510-8 CAD Drawing
    Unidirectional and Bi-Directional Surface Baffles for 4 Unidirectional and Bi-Directional Surface Baffles for 4" and 8" Loudspeakers (1 page)
