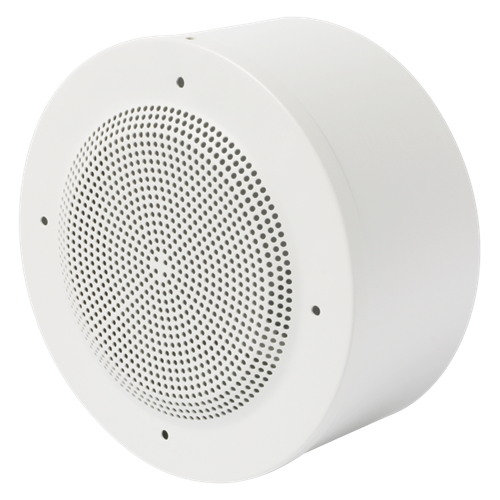

Compact Aluminum Baffle for Wall or Ceiling Use 8 inch - White


    Compact unidirectional aluminum baffle/enclosure with one-piece grille provides long lasting service indoors or out.

    Sturdy assembly features a spun .038 aluminum housing and mounts easily to walls, ceilings, or to 4" (102mm) octagon E.O. boxes (manufactured by others).

    Model 410-8W mount a standard 8" (203mm) loudspeaker (will not work with 8W transformers).

    Baffle interior is undercoated and patchjute lined to prevent mechanical and acoustical resonance. Assembly is finished in textured white (W) epoxy.

    Attractive, Non-Rusting Aluminum Construction
    Ideal for Corridor Applications Where Surface Mounting Space is Limited
    Unidirectional Model 8" (203mm) Loudspeakers
    Tech Specs
    Depth 4.4375" (112.7mm)
    Diameter 9.3125" (236.5mm)
    Shipping Weight 2.00 lbs (0.91 kgs)
    Speaker Size 8
    Support Files

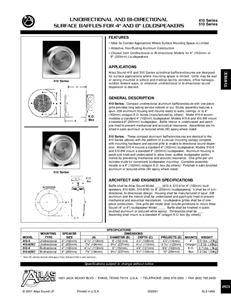

    SL3.1469 (1 page) View | Download
