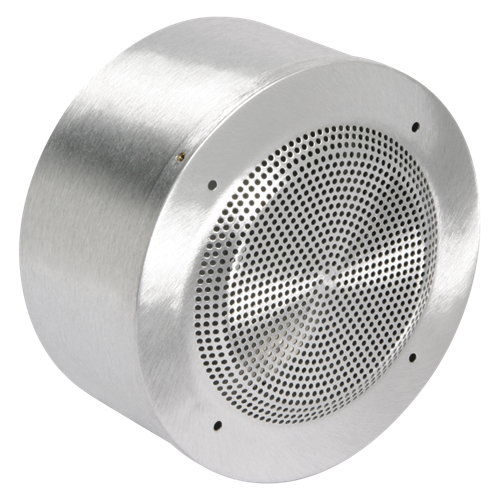

Compact Aluminum Baffle for Wall or Ceiling Use 8 inch

410-8

  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
    DESCRIPTION

    Compact unidirectional aluminum baffle/enclosure with one-piece grille provides long lasting service indoors or out.

    Sturdy assembly features a spun .038 aluminum housing and mounts easily to walls, ceilings, or to 4" (102mm) octagon E.O. boxes (manufactured by others).

    The model 410-8 mounts a standard 8" (203mm) speaker (will not work with 8W Transformers). Baffle interior is undercoated and patchjute lined to prevent mechanical and acoustical resonance.

    Finished in satin aluminum.


    Features
    • Attractive, Non-Rusting Aluminum Construction
    • Ideal for Corridor Applications Where Surface Mounting Space is Limited
    • Unidirectional Model 8" (203mm) Loudspeakers

    SPECIFICATIONS
    Depth 4.4375" (112.7mm)
    Diameter 9.3125" (236.5mm)
    Shipping Weight 2.00 lbs (0.91 kgs)
    Speaker Size 8

    SUPPORT FILES
    Unidirectional and Bi-Directional Surface Baffles for 4 Unidirectional and Bi-Directional Surface Baffles for 4" and 8" Loudspeakers (1 page)
