PoE+ IP Addressable IP-to-Analog Gateway with Transformer

ZCM-V2-PLUS-T
  • G.711 Capable
  • G.722 Capable
  • Network Ready
  • GCK Optimized
  • InformaCast Compatible
  • SA-Announce Compatible
  • PoE Enabled
  • Powered

    THIS MODEL HAS BEEN REPLACED BY MODEL IP-ZCM

    AtlasIED IP-to-analog gateways are perfect for connecting your unified communication platform to off network analog third party systems, including, but not limited to, sending notifications to analog overhead paging, trigger or be triggered by access-control systems, assist to fire alarm, and two-way audio support for video-surveillance, simply plug and play.

    AtlasIED ZCM-V2+T registers as a communication endpoint directly within InformaCast, and SA-Announce Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.

    When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

    Where 3rd party notification applications are not required, the ZCM-V2+T IP–to–Analog Gateways can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications.

    Mounting hardware PA702-RMK can accommodate one or two units mounted side by side.

    Features

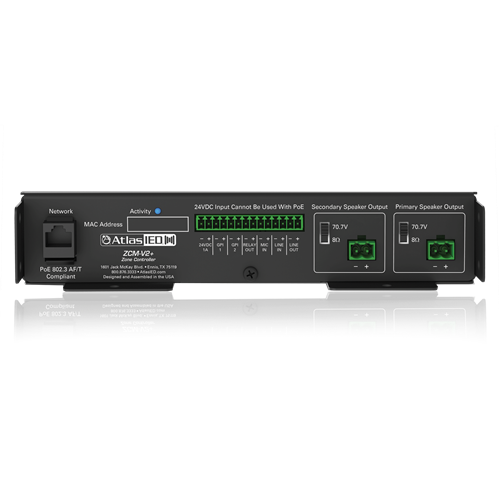

    The ZCM-V2+T from AtlasIED consist of a factory assembled PCB control board housed in a rugged and compact 1RU chassis. The unit provides the same addressable end point functionality as an IP speaker or IP phone with the convenience of line level and amplified audio output. This line level output is ideal for use with AtlasIED AA, PA, or CP series amplifiers to power large zones of traditional 25V, 70.7V, or 100V AtlasIED speakers or paging horn speakers.

    In addition to the line level output, the ZCM-V2+T provides 2-channels of 15-Watt RMS at 8-ohm or, 70.7V amplified output to drive a small cluster of analog speakers. It also includes 2 GPI Inputs, 1 GPI Output and Microphone input for talk back or listen applications.

    The ZCM-V2+T features include Auto-provisioning and auto-registration. This is an easy and timesaving way to configure our IP speakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed.

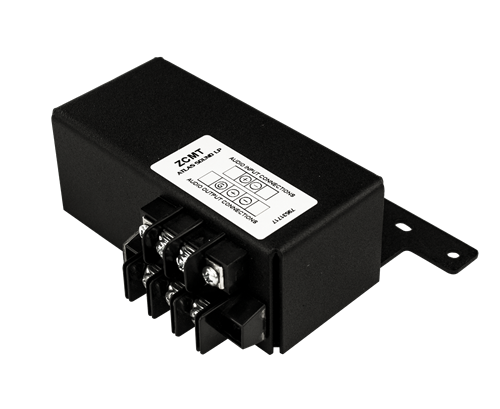

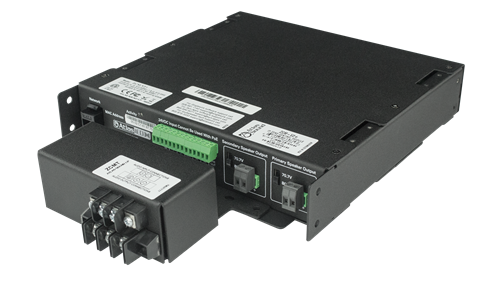

    Unit ships with optional transformer, model ZCMT, for use in applications requiring line out signal with additional volume level adjustment.


    Features
    • Network Features

    • Dynamic or Static IP Address
    • IEEE802.3 10/100Base-T Ethernet
    • IEEE 802.1q Tagging
    • IEEE 802.11AT Compliant
    • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)

    • Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or  IEDNet+ for AtlasIED Applications

    • Static Configuration: HTTP GUI for Static Configuration or Cisco SRST
    • Audio Features

    • Aux Audio Line-In Unbalanced (2.8Vpp 10K)
    • Aux Audio Line-Out Unbalanced (2.8Vpp 10K)
    • Additional Features
    • 2 General Purpose Inputs
    • 1 General Purpose Output (2A @ 30 VDC)
    • Phone/Night Loud Ringer
    • External Power Supply Option

    SPECIFICATIONS
    Power Rating 9 Watts RMS into an 8Ω Load w/ 24VDC Input
    Inputs RJ-45 Female on PCB
    Outputs 600Ω, 8Ω, 25V, or 70.7V
    Power Source IEEE 802.3af Compliant POE Network Switches / Local 24VDC PSU
    Network Control Multicast Enabled Networks
    Sample Rate 50V @ 500mA Max
    Input Minimum 1mA to Run on 50V Max
    Rack Units 1RU
    Height 1.75" (45mm)
    Width 8" (203mm)
    Depth 10" (254mm)
    Warranty Period 12 months from date of purchase

    SUPPORT FILES
    ZCMT Wiring Diagram (1 page) ZCMT Wiring Diagram (1 page)
    Firmware Version 12.25.2b01 Firmware Version 12.25.2b01

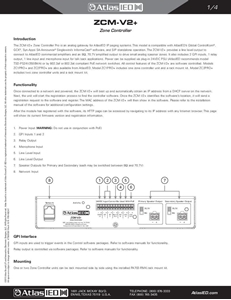

    ZCM-V2+ Install Sheet (4 pages) ZCM-V2+ Install Sheet (4 pages)

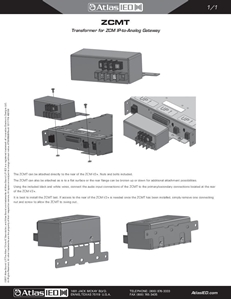

    ZCMT Install Sheet (1 page) ZCMT Install Sheet (1 page)

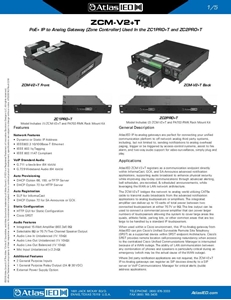

    ZCM-V2+T Datasheet (5 pages) ZCM-V2+T Datasheet (5 pages)
