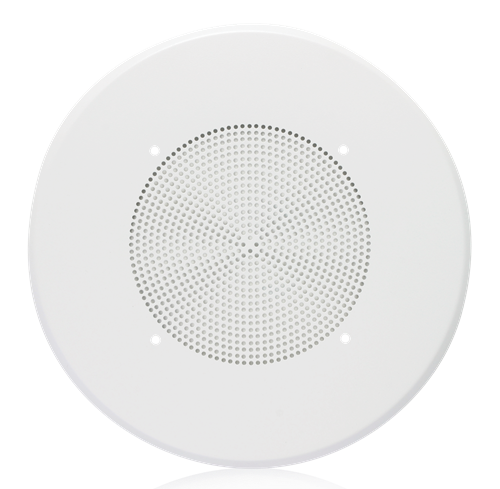

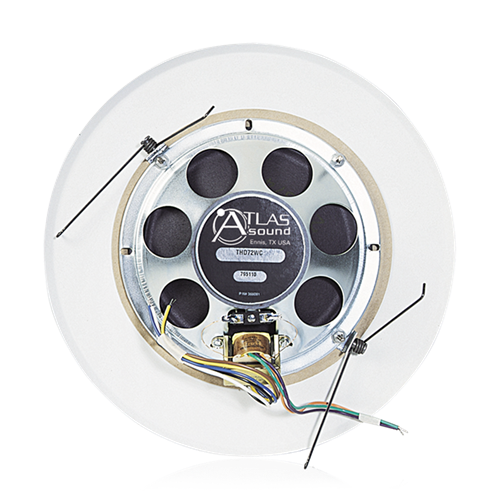

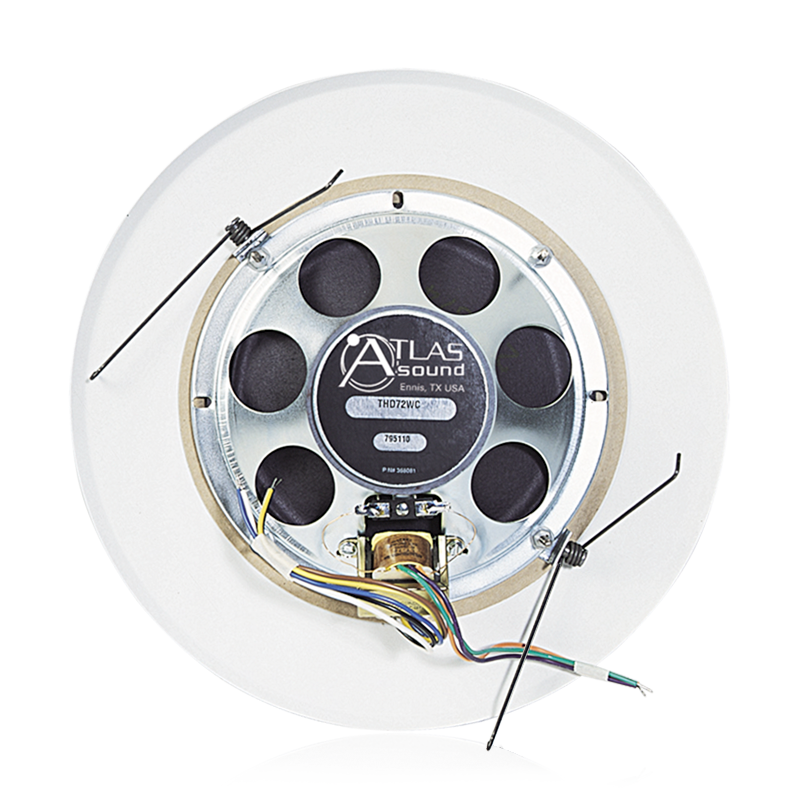

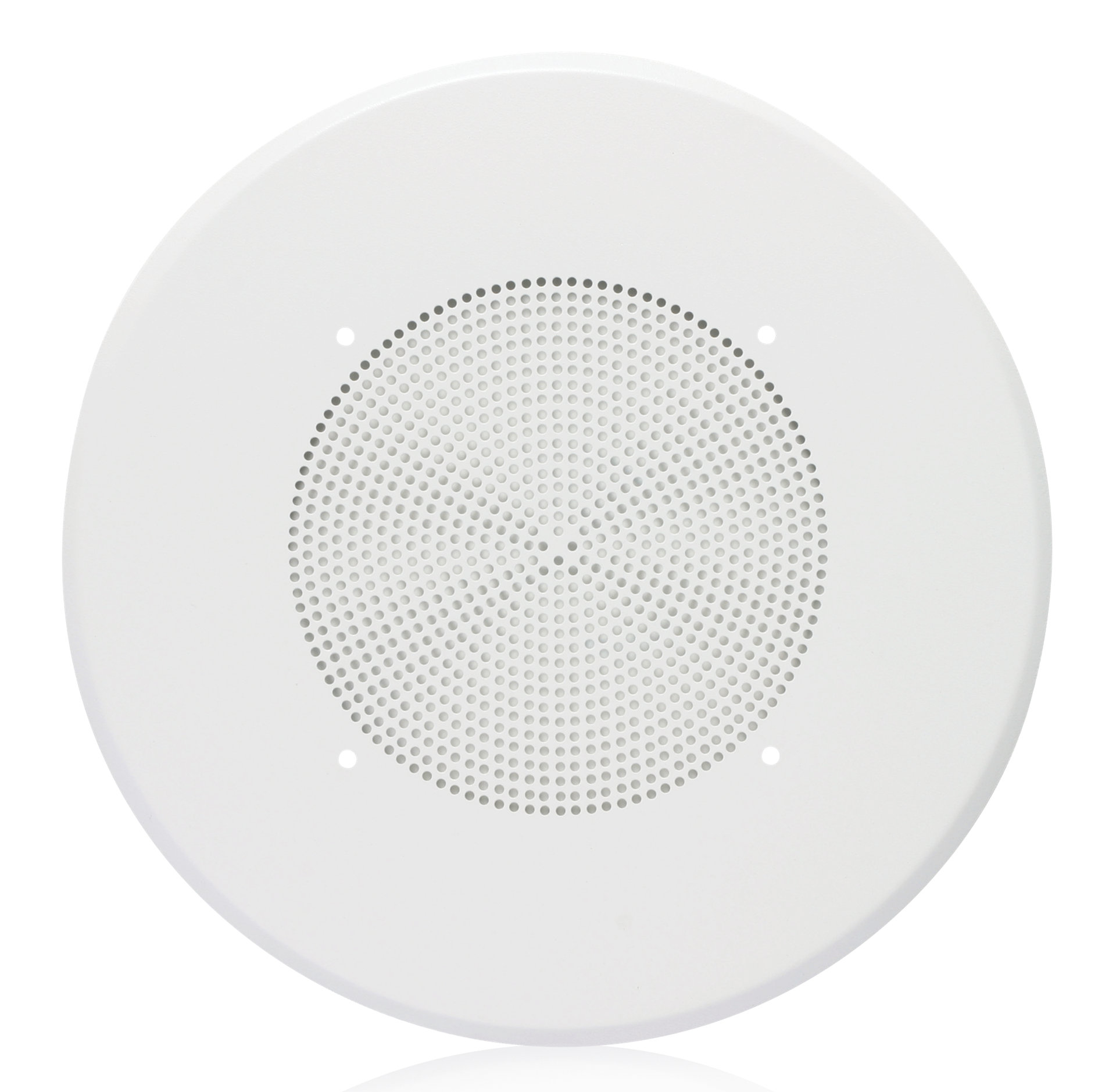

8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and T62-8 Torsion Baffle

Name: 4-Watt In-Ceiling Speaker with Transformer and Torsion Baffle
Brand: AtlasIED
SKU: THD72WC
Rating: 5 (5 reviews)

THD72WC

Availability: In stock

Your Price:

$73.99

DESCRIPTION

THD72WC are cost-effective 8" dual-cone speaker assemblies which deliver wide frequency response for general purpose voice and music reproduction. Units are shipped complete with grille and 25/70.7-volt transformer factory wired to reduce field installation time and expense. HD Series models have a power rating of 25 watts and are mounted to a T62-8 torsion mount baffle. It will accept optional protective enclosures and mounting accessories to meet installation and code requirements

Features

Equipped with an LT-72 Factory-Installed Line-Matching Transformer
EZ Versions Available with Pre-Mounted Brackets and Rails for Quick Assembly in Standard 2 x 4 Suspended Tile Ceilings
Decrease Installation Time and Expense with Pre-Assembled Loudspeaker, Transformer, & Baffle Combinations

SPECIFICATIONS

Speaker Type	Treated Paper
Sensitivity	97dB Peak, 94dB Average
Frequency Response	100Hz - 10kHz
Power Taps	.5, 1, 2, & 4 Watts
Dispersion	105°
Depth	2 7/8" (7.3025 cm)
Diameter	8" (20.32 cm)
Shipping Weight	4.50 lbs (2.04 kgs)
Warranty Period	60 months from date of purchase

SUPPORT FILES

FD/EZFD & HD/EZHD Series Datasheet (2 pages)

View | Download
