PoE+ Indoor Wall Mount IP Speaker with LED Display, LED Flashers, and Talkback Microphone

IP-SDMFLED
  • BAA
  • CETL
  • CE
  • Flasher Included
  • LED Display Included
  • PoE+
  • Enclosure Sold Separately
  • FCC
  • G.711 Capable
  • G.722 Capable
    DESCRIPTION

    AtlasIED IPX Series IP-SDMFLED indoor wall mount IP speaker with LED display and flasher leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.

    AtlasIED IP-SDMFLED registers as a communication endpoint directly within InformaCast, and SA-Announce Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.

    IP-SDMFLED IP speakers with display and flasher provide equality “effective communication”.

    “Under Title II of the ADA, all state and local governments are required to take steps to ensure that their communications with people with disabilities are as effective as communications with others.”

    What does it mean for communication to be “effective”? Simply put, “effective communication” means that whatever is written or spoken must be as clear and understandable to people with disabilities as it is for people who do not have disabilities.

    Where 3rd party notification applications are not required, the IP-SDMFLED speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

    Features

    IP-SDMFLED indoor speakers are fitted with an 8" (205mm) coaxial speaker that is optimized for voice intelligibility.

    The grills for the IP-SDMFLED IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

    While in Standby, the IP-SDMFLED displays time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date.

    The LED flashers located below the display can be used to alert room occupants of an incoming audio message as well as scrolling text message in accordance with ADA compliance.

    All Atlas IP speakers consist of a factory assembled speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.

    The IP-SDMFLED features include auto-provisioning and auto-registration. This is an easy and timesaving way to configure our IP speakers on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP speakers share the same Quality of Service (QoS) so communications are always secure and guaranteed

    Includes GPI/O ports offer trigger for critical alert notification, or unified connectivity of third party systems.

    Mounting hardware: (sold separately)

    • Wall – Flush (In-Wall): IP-FEST-SD
    • Wall – Surface (On-Wall): IP-SEST-SD
    • Wall – Slanted (On-Wall): IP-SEA-SD

    For IPX firmware updates, please contact AtlasIED tech support at 1-800-876-3333 or support@atlasied.com

    Different systems require different solutions.  Our tech support team will quickly ensure that you receive the updates that will keep your unique system running smoothly!


    Features
    • Network Features

    • Dynamic or Static IP Address
    • IEEE802.3 10/100Base-T Ethernet
    • IEEE 802.1q Tagging
    • IEEE 802.11AT Compliant
    • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)

    • Auto Registration: SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or  IEDNet+ for AtlasIED Applications

    • Static Registration: HTTP GUI for Static Configuration
    • Audio Features

    • Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
    • Aux Audio Line-In Balanced (2.8Vpp 10K)
    • Aux Audio Line-Out Balanced (2.8Vpp 10K)
    • Additional Features
    • 2 General Purpose Inputs
    • PoE+Enabled

    • 1 General Purpose Output (2A @ 30 VDC)
    • Phone/Night Loud Ringer
    • External Power Supply Option

    SPECIFICATIONS
    Speaker Type Coaxial
    Speaker Size 8" LF, 1" HF
    Frequency Response 86Hz - 15.5kHz
    Dispersion 105˚ (2kHz Octave Band, -6dB Points)
    Sensitivity 98dB SPL Average
    Power Rating 12-Watts Max (802.3AF) / 25-Watts Max (802.3AT)
    THD <0.2%
    Grille Powder Coated Steel
    Connector Type RJ-45
    Height 14.37" (365mm)
    Depth 3.42" (87mm)
    Width 12.87" (327mm)
    Safety Listed 62368-1, CSA C22.2 #62368-1, IEC 62368-1 CB Scheme and FCC
    Shipping Weight 6.37 lbs (2.89kgs)
    Warranty Period 12 months from date of purchase

    SUPPORT FILES
    IPX Series Install Sheet (4 pages) IPX Series Install Sheet (4 pages)
    IPX Endpoint Firmware Update Guide (1 page) IPX Endpoint Firmware Update Guide (1 page)
    IPX Endpoint Quick Start Guide (3 pages) IPX Endpoint Quick Start Guide (3 pages)
    IPX System Firmware Release 1.8.0 IPX System Firmware Release 1.8.0
    IPX Series Firmware Release Notes (1 page) IPX Series Firmware Release Notes (1 page)
    AtlasIED Discover Quick Start Guide (9 pages) AtlasIED Discover Quick Start Guide (9 pages)
    AtlasIED Discover v1.3.4 AtlasIED Discover v1.3.4
    IPX Product Overview (3 pages) IPX Product Overview (3 pages)
    IPX Endpoint Quick Start Guide (1 page) IPX Endpoint Quick Start Guide (1 page)
    IPX Endpoint FAQ (5 pages) IPX Endpoint FAQ (5 pages)

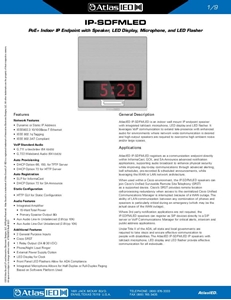

    IP-SDMFLED Datasheet (9 pages) IP-SDMFLED Datasheet (9 pages)
