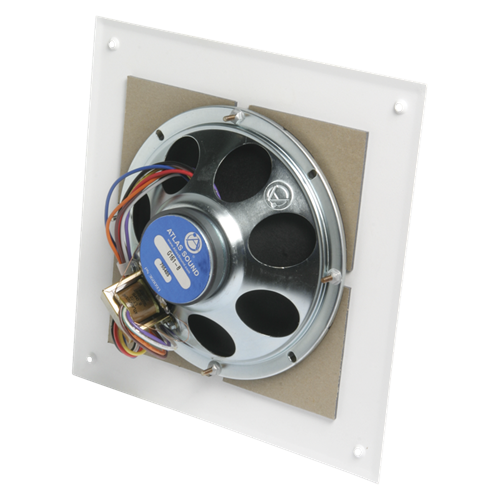

8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 161-8 Square Baffle

G161-8
Availability: In stock
Your Price:
$86.99
  • UL Listed
  • CUL
  • BAA
  • TAA
  • HYFIDROPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

    Convenient, labor saving assemblies are ideal for use wherever a general-purpose paging and music speaker is required. Quality components are factory wired and shipped complete with dual-cone speaker, dual-voltage transformer and round or square grille.Quality speaker package for ceiling or wall installation include speaker with 5 oz. magnet and dual-voltage transformer. Included grille is square  with attractive white epoxy finish. To meet code requirements and facilitate installation in a wide variety of ceilings, AtlasIED offers an optional selection of recessed and surface mounting enclosures, mounting rings and tile bridge accessories.


    Features
    • 161-8 Grill Mounts to Several Recessed and Surface Mount Enclosures
    • 4 Watt, Dual Voltage 25/70 Volt Transformer
    • 8" Speaker with Wizzer Cone and 5oz. Magnet
    • Factory-Assembled Loudspeaker Packages Reduce Installation Time and Expense
    • Packaged in Individual Boxes that Include Both Hardware Bag and Installation Instructions
    • Standard Bolt Hole Pattern Matches a Variety of Plaster Rings, Tile Bridges, & Enclosures
    • Tap Selection Codes on Transformer Make Installation Easy
    • True Suspension Speaker Needs No Enclosure to Sound Great

    SPECIFICATIONS
    Frequency Response 100Hz - 10kHz
    Sensitivity 96dB
    Power Taps .5, 1, 2, & 4 Watts
    Speaker Type Treated Paper
    Dispersion 105°
    Depth 2 5/8" (6.6675 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 4.67 lbs (2.12 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    D161-8 & G161-8 Data Sheet (1 page) D161-8 & G161-8 Data Sheet (1 page)
