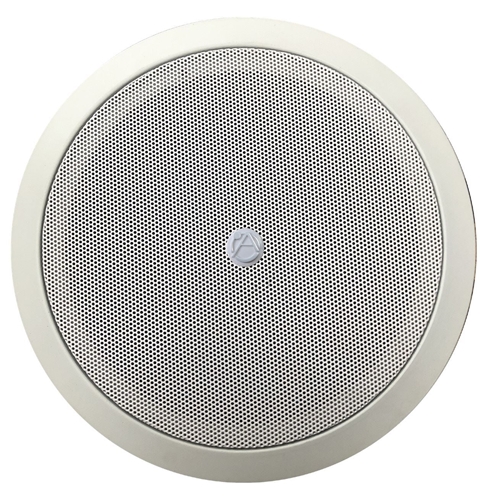

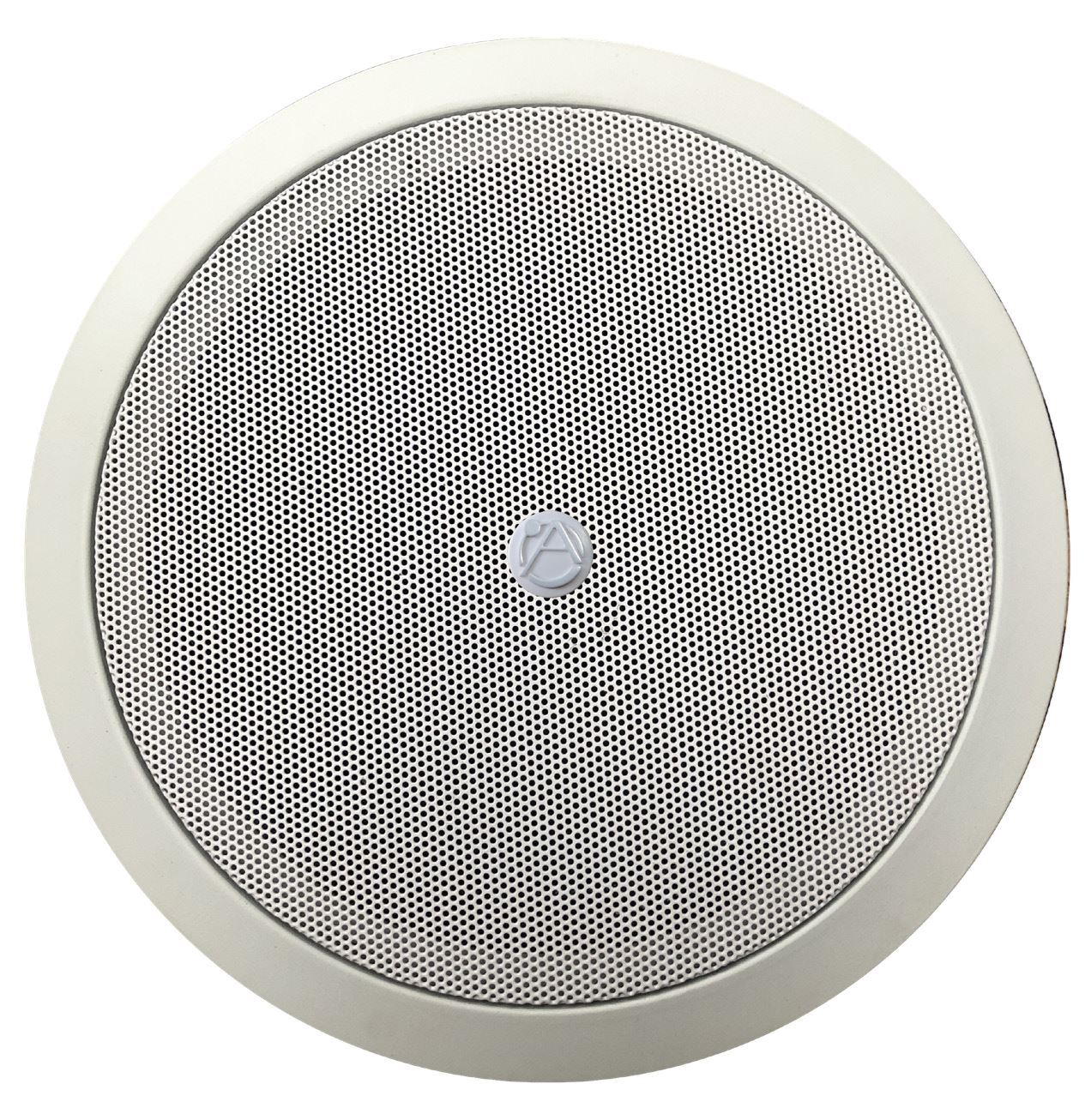

6.5" In-Ceiling Full Range Speaker with 8-Watt 70V/100V Transformer and Press Fit Grille

DLS6

Only available in Asia

  • 70V100VCAPABLE
    DESCRIPTION

    PLEASE NOTE: This product is stocked and shipped from your warehouse in China. This product is ONLY available for sale in Asia.

    The DLS6 provides excellent performance for paging and background music applications. High sensitivity provides maximum sound lebel, even at low tap settings.


    The speaker is a 165mm (6.5") speaker with a high 95 dB sesitivity, great bass extension, and a 6-watt multi-tap transformer. The speakers' pre-attached dual voltage transformer provides versatility by allowing use on 100v or 70v distributed loudspeaker lines. The drivers feature a full 14mm (0.55") diameter voice coil with a better power dissipation and long-term reliability. For installation and convenience, the speaker grille and transforemer are pre-attached to the driver. Grilles are powder-coated steel.  The backcan can be installed to the speaker and wired prior to installation.


    Features
    • Affordably priced, high-quality dual-code ceiling speaker
    • Pre-assembled speaker/transformer grille assembly
    • Suitable for most paging or background music applications, including retail stores, restaurants, schools and other facilities
    • Very high sensitivity providing maximum sound Ievels using minimal amplifier power
    • Multi-tap transformer for 100V and 70V distributed speaker lines
    • Easy blind-mount installation from below the ceiling with spring clamp
    • Optional backcan for inhibiting fire, preventing dust, and limiting sound from the back of the speaker

    SPECIFICATIONS
    Frequency Range 70Hz - 20kHz
    Driver Type 6.5" Full-Range Driver
    Power Taps (100V) 6W, 3W, 1.5W
    Power Taps (70V) 3W, 1.5W, 0.8W
    Sensitivity (1W/1M) 95dB
    Impedance 8 ohms
    Coverage 120°
    Cut Out Diameter 6.89" (175mm)
    Dimensions H x Diameter: 2.6" x 7.87" (66mm x 200mm)
    Weight 1.4 lbs (0.63kg)
    Shipping Weight 1.88 lbs (0.85kg)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    DLS6 Ceiling Speaker Data Sheet (2 pages) DLS6 Ceiling Speaker Data Sheet (2 pages)
