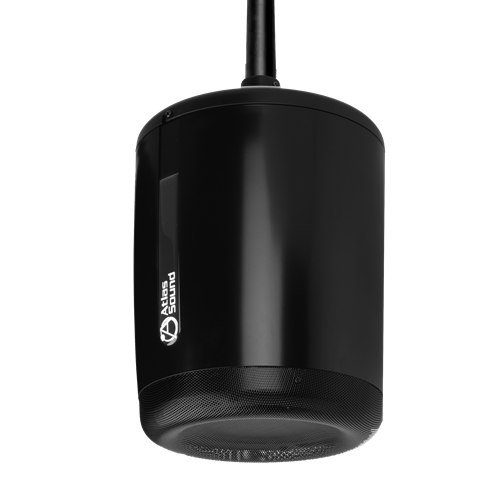

8" Pendent Mount Subwoofer with 60-Watt 70.7V Transformer - Black

PM8SUB-B

Availability: In stock
Your Price:
$470.99
  • IPX3
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
    DESCRIPTION

    The AtlasIED PM8SUB-B matches the sonic quality of the high performance 8” Strategy II Series FAP8SUB driver. This speaker is the same device used in AtlasIED’s successful model FAP8SUB in-ceiling subwoofer package. Mounted down-firing in an attractive enclosure, the PM8SUB provides natural sounding, wide coverage for low height installations while delivering excellent low frequency response for both music applications.

    Attaching a PM8SUB to most over head surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3/4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTECTM brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling angle (Up to 45°).


    Features
    • Integrated 70.7V Transformer with Power Taps at 7.5, 15, 30, & 60 Watts with 8Ω Bypass
    • 3 Meters of 2mm Cable & Mounting Hardware Included
    • Compatible with Standard 3/4" Ceiling Fan Hardware
    • Ideal Low Frequency Driver for High Ceiling Applications

    SPECIFICATIONS
    Frequency Response 46Hz - 160Hz
    Sensitivity 92dB Average
    Speaker Type Subwoofer
    Impedance 7.5, 15, 30, 60W & 8Ω
    8Ω RMS Power 150 Watts
    Dispersion Omni
    Crossover Three Pole Design 18dB / octave @ 120Hz
    Enclosure Volume 1075 cu in
    Height 16 5/8" (42.2148 cm)
    Diameter 12 1/4" (31.115 cm)
    Shipping Weight 21.00 lbs (9.53 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    PM8SUB CAD File PM8SUB CAD File
    PM8SUB-B Revit Drawing PM8SUB-B Revit Drawing
    PM8SUB CLF DATA PM8SUB CLF DATA
    PM8SUB EASE DATA PM8SUB EASE DATA
    PM8 Series Revit Family PM8 Series Revit Family
    PM8 Series CAD File PM8 Series CAD File
    Installation Sheet (12 pages) Installation Sheet (12 pages)
    Installation Sheet (12 pages) Installation Sheet (12 pages)
    PM Series Install Sheet (7 pages) PM Series Install Sheet (7 pages)
