All Weather Outdoor Landscape Speaker with Short Base and 32-Watt 70V Transformer

GSS-G

Availability: In stock
Your Price:
$588.99
  • IP55
  • 4OHM8OHMCAPABLE
  • Non-Powered
  • 70V100VCAPABLE
    DESCRIPTION

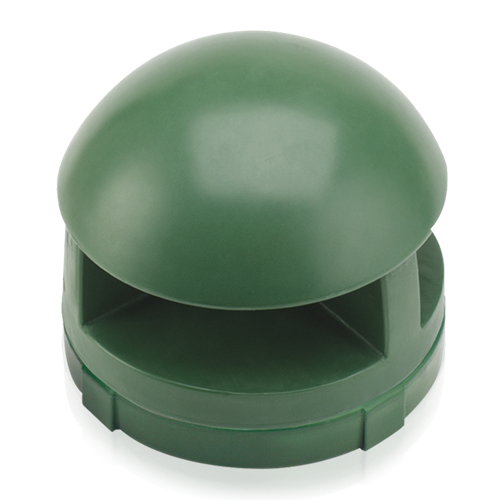

    The AtlasIED GSS-G garden speaker, designed for theme parks, hotels, or any architecturally landscaped area, simplify installation and deliver deep, rich sound. The speaker is a coaxial 8", polypropylene/kevlar cone with rubber surround, 1.5" voice coil, 21 oz. magnet and a 1/2" mylar dome tweeter.

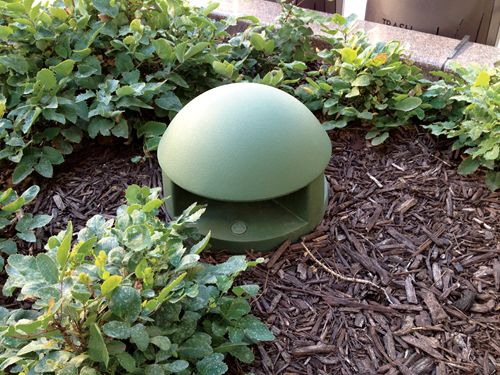

    The AtlasIED GSS-G garden speaker is designed to blend into any environment. This model includes a short base for surface mounting. The two-piece design allows for a two-phase installation. In phase one, the base is installed. Phase two, after initial construction is done, the system contractor can return to install the speaker/transformer.

    This multiple step process protects the speakers from being damaged during the construction/landscaping process and also eliminates the potential for theft from the construction site. The GSS-G Garden Speaker base even has a protective cover to keep debris out during construction. Inside the enclosure is a durable 8" coaxial speaker with a great sounding 360-degree horizontal dispersion pattern.

    The enclosure is made of stable polyethylene, which ensures performance in even the most temperamental and unpredictable climates.

    Each component can also be ordered separately:

             GSH-G Head Unit

             GSBT-G Tall Base

             GSBS-G Short Base


    Features
    • Available in a Green Finish
    • Revolutionary two-piece design allows for two-phase installation

    SPECIFICATIONS
    Frequency Response 43Hz - 20kHz
    Sensitivity 83.5dB 1W/1m (Half Space Ref)
    Power Taps 8, 16 & 32 with 8Ω Bypass
    Speaker Type Deck-mount
    Dispersion 360°H x 50°V
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    GSS-G CAD Drawing GSS-G CAD Drawing
    GSS-G & GST-G Garden Speaker Datasheet (2 pages) GSS-G & GST-G Garden Speaker Datasheet (2 pages)
    Garden Speaker Install Sheet (2 pages) Garden Speaker Install Sheet (2 pages)
