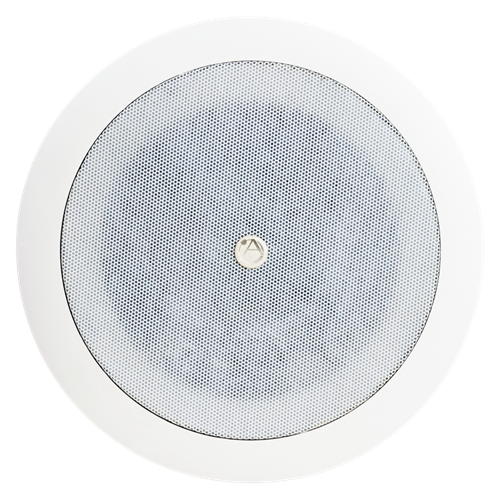

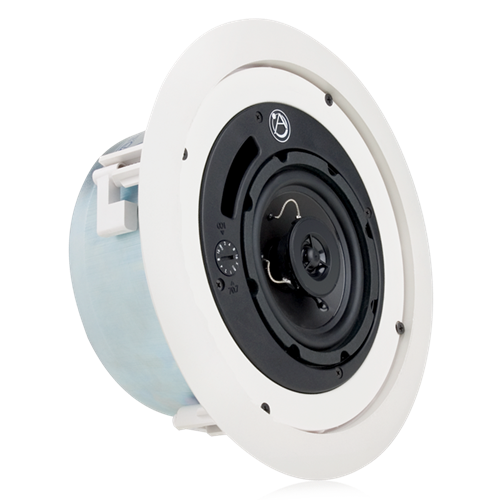

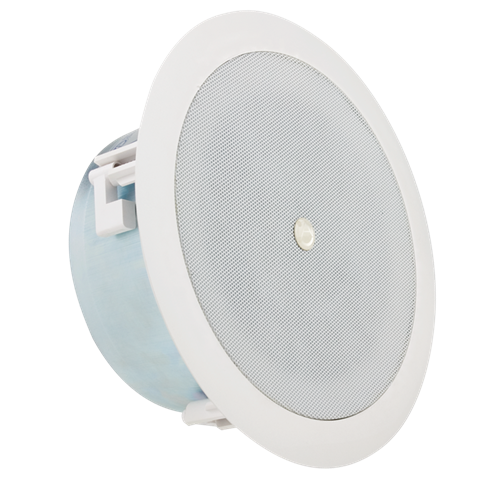

4" Shallow Mount Coaxial In-Ceiling Speaker with 16-Watt 70/100V Transformer

FAP42TC

Availability: In stock
Your Price:
$153.99/each
Must purchase in multiples of 2
  • UL Listed
  • CE
  • 70V / 100V Operation
  • HYFIDROPHOBIC_OPTIONAL
  • Non-Powered
  • Paintable
  • 8Ω Operation
    DESCRIPTION

    With an overall depth of 4" (102mm) the FAP42TC is the perfect choice when high fidelity audio and wide, even coverage is required but space above the plenum is limited. For wall mount applications (tanning salons or surround sound) the short 4" depth will even work in most stud wall installations. A simplified input section features a 4-pole Phoenix style connector for easy daisy chaining between speakers. A simple cover including combination 1/2" (13mm) / 3/4" (19mm) knock-outs is provided for installation ease. The popular AtlasIED "C-ring / V-Rail" mounting system is provided for quick installation into drop tile acoustic ceilings and existing construction drywall. For new construction drywall applications the optional FAP42-TR may be used. All other popular features of the FAP42T are included on the new FAP42TC including the front mounted tap selector switch (with included transformer bypass for 8 Ohm applications), attractive press-fit grills, high performance 4" polypropylene cone driver with 3/4" (19mm) PEI tweeter and precision crossover components for smooth, even coverage.


    Features
    • "Press Fit" Grilles Blend Better into Contemporary Architecture
    • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
    • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications

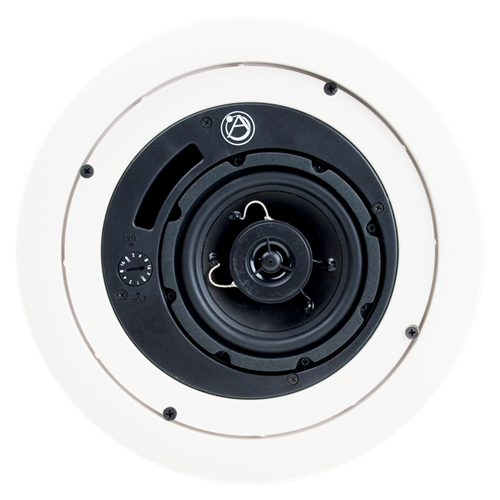

    • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    • Low Depth (4") Speaker System for Limited Space Applications
    • UL 1480

    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 88dB Average
    Power Taps 1, 2, 4, 8, 16 Watts & 8Ω
    Frequency Response 75Hz - 20kHz
    Dispersion 130°
    Depth 4 1/4" (10.7696 cm)
    Diameter 10 1/2" (26.67 cm)
    Shipping Weight 13.00 lbs (5.90 kgs)
    Certified to Safety Listing UL 1480
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    FAP42TC CAD Drawing FAP42TC CAD Drawing
    FAP42TC Revit Drawing FAP42TC Revit Drawing
    FAP42TC Installation Sheet (1 page) FAP42TC Installation Sheet (1 page)
    FAP42TC Data Sheet (4 pages) FAP42TC Data Sheet (4 pages)
